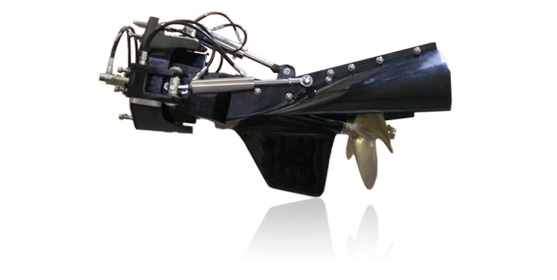

STP-400 H
The layout of the 400H based solely on the criteria of commercial applications!
Reliability, longevity, high thrust and less maintenance combined with excellent maneuverability and high efficiency meet the requirements of the commercial user.
That drive is also perfect suitable for fast Yachts!
Reliability, longevity, high thrust and less maintenance combined with excellent maneuverability and high efficiency meet the requirements of the commercial user.
That drive is also perfect suitable for fast Yachts!
| Technical Data | |
| Drive designation | STP-400H |
| Length, mm | 1320 |
| Width, mm | 690 |
| Weight, kg | 220 |
| Propeller-diameter maximum, (in.) | 23” |
| Torque maximum, (lbft) | According to application, up to 3700 (5000Nm) |
| Rotation speed maximum, rpm | 4000 |
| Rotation direction | RH / LH |
| Material | Aluminium alloy, stainless steel |
| Material Propellershaft | Stainless steel CSM-21 |
| Propshaft spline | z31 |
| Trimangle | 27° |
| Steering angle right / left each | 25° |
| Steering system | Fully hydraulic (power-steering supported) |
| Trim system | Electro hydraulic |
| Freshwater inlet | Extern |
| Exhaust | Extern |
| Colour | Black |
| All specifications are subject to change without notice. For further information please contact your local SARO-dealer. Exclusive our conditions of sales and export are valide. The drive illustrated may not be entirely identical to production standard drives. MSA-Marine-Systems GmbH is official license partner of SARO Metallbau Bootsbetriebe. | |
